$3,290

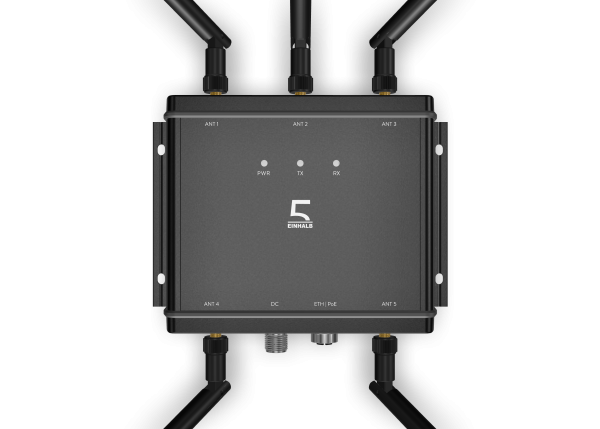

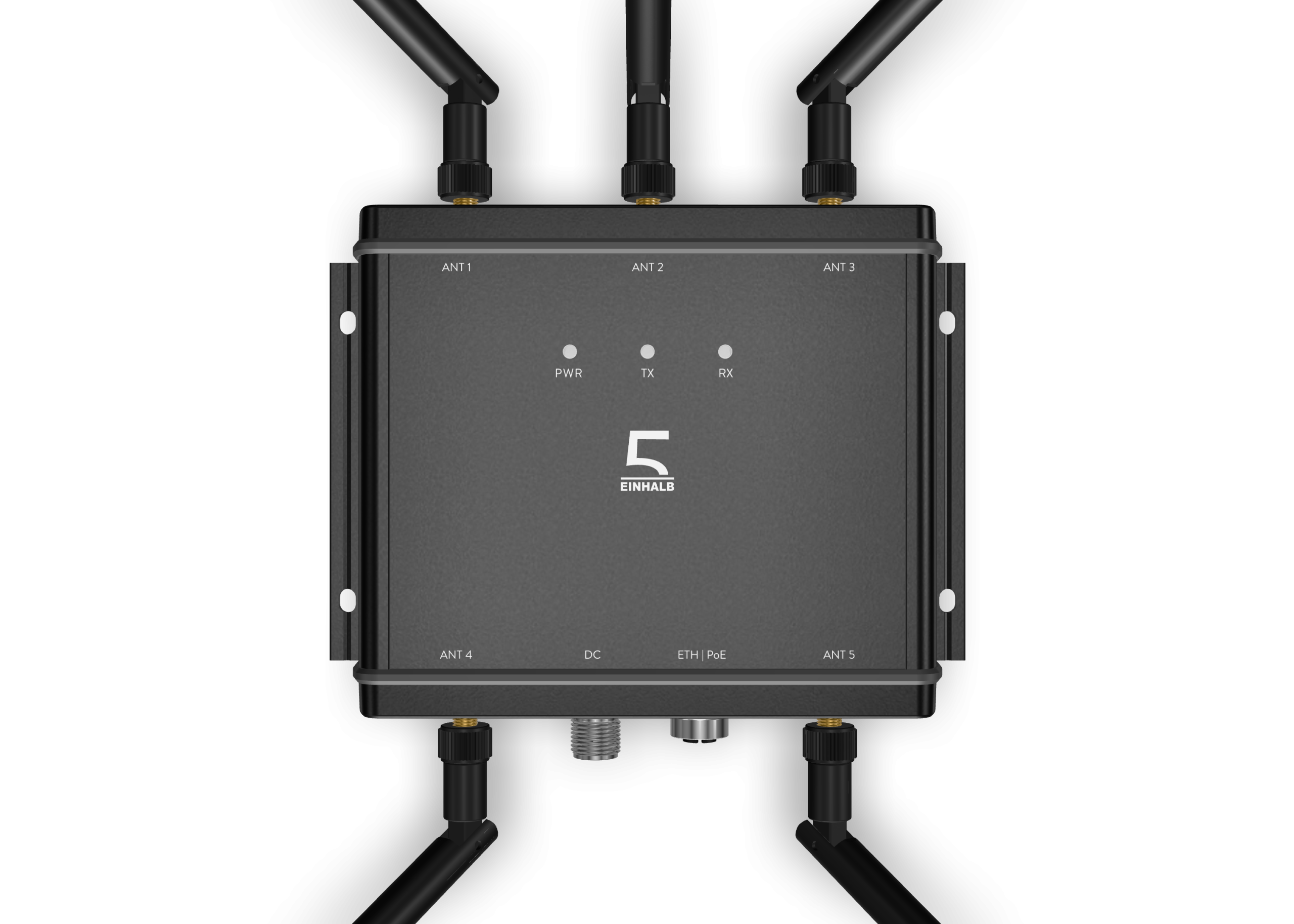

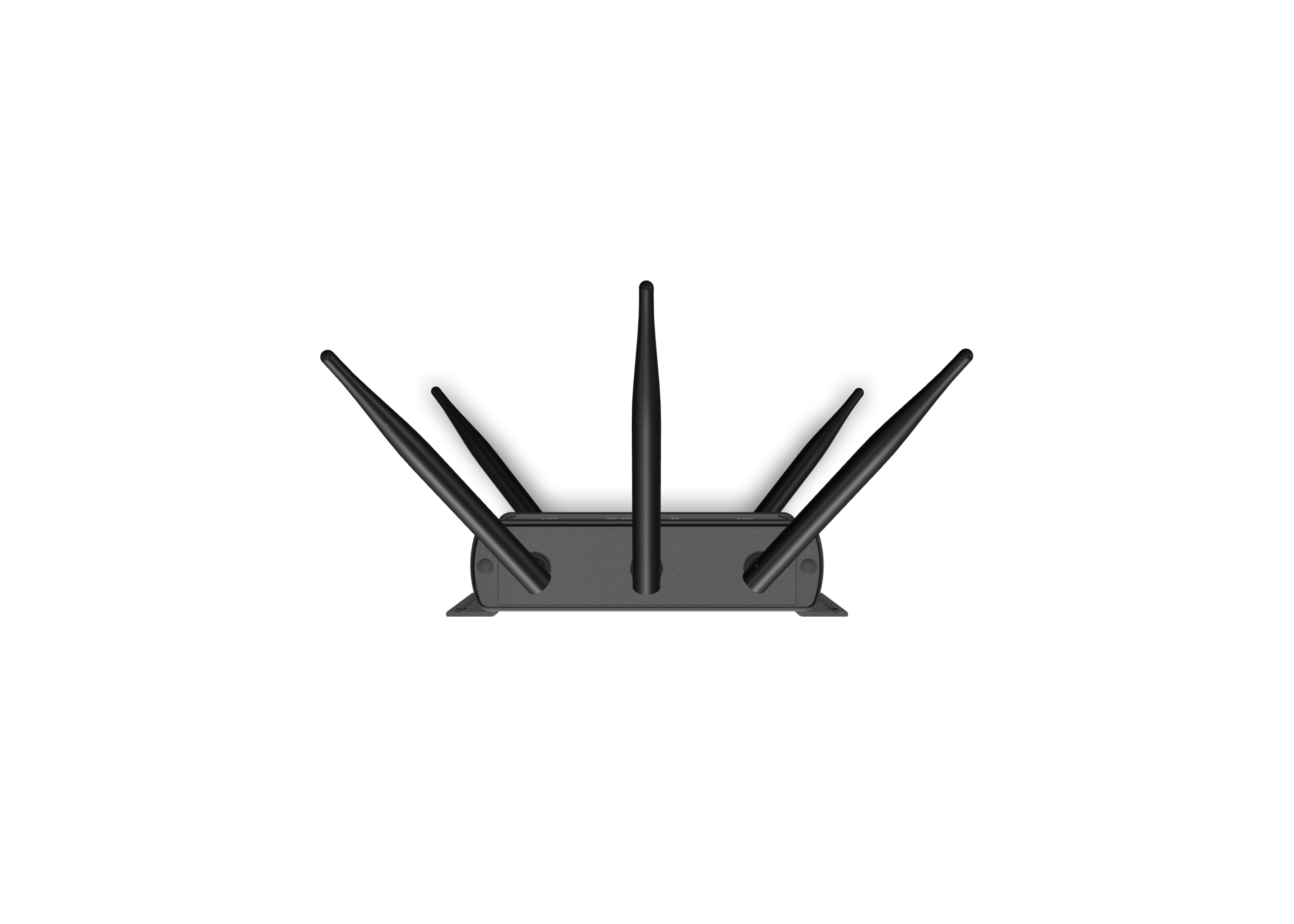

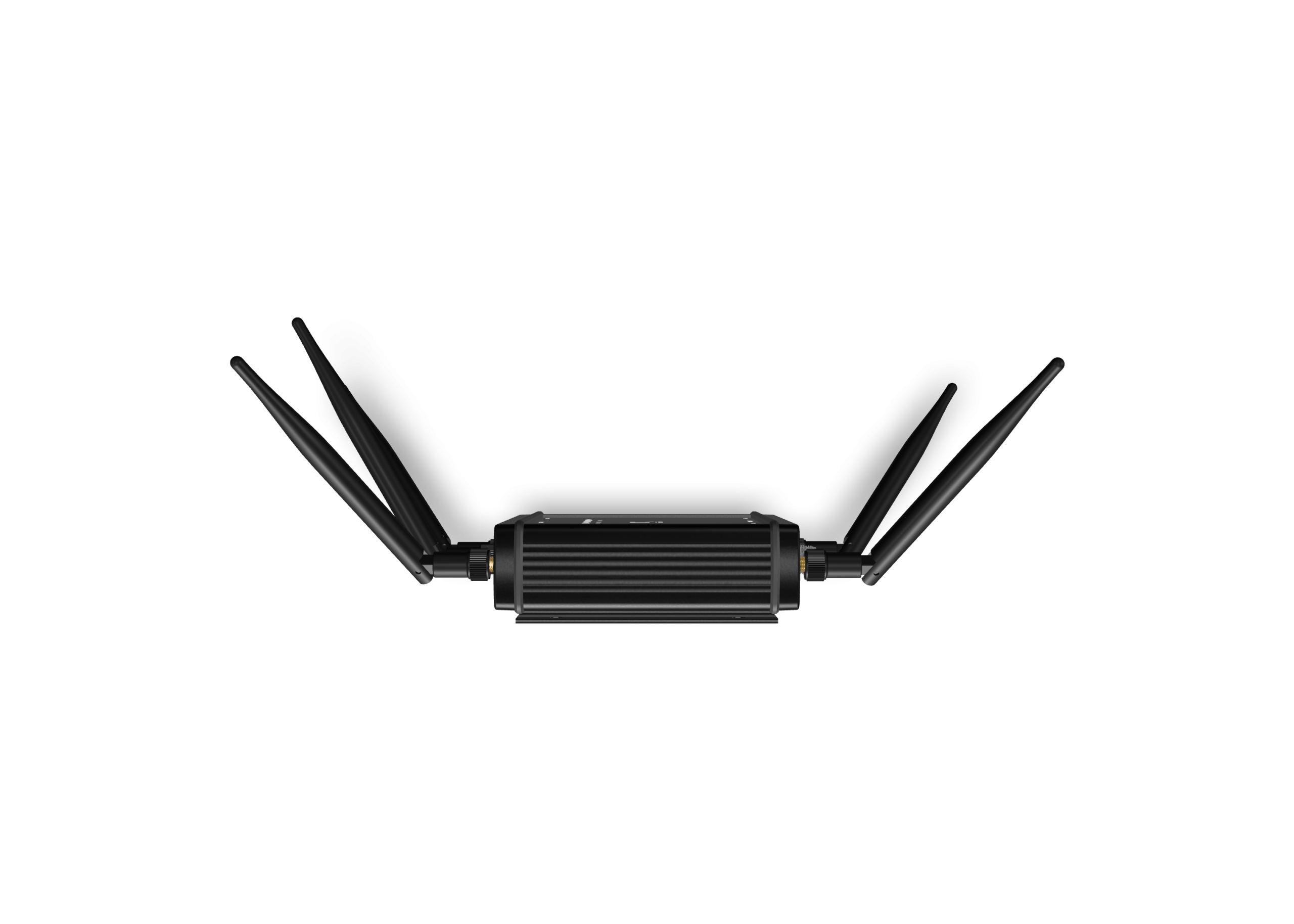

BlitzFunk is an industrial-grade, real-time WLAN system designed to offer highly reliable, low-latency wireless Ethernet communication—tailored for applications like automated guided vehicles, mobile robots, overhead cranes, and other dynamic industrial machinery. The system comprises Access Points (APs) and Clients, networked via Ethernet. Clients are typically mounted on machines or within control cabinets, while APs are installed on ceilings or walls.
BlitzFunk redefines industrial WLAN with:
Manufacturer: Fuenfeinhalb / Country of Origin: Germany
SKU:
Wireless Features
| Frequency Spectrum | 2412 MHz – 2462 MHz 5180 MHz – 5240 MHz 5745 MHz – 5865 MHz 5955 MHz – 6415 MHz |
| Bandwidth | 2 × 20 MHz |
| Quality of Service | |
| Maximum One-Way Latency | 4 ms for 1 client |
| +2 ms per additional client | |
| Additional Latency during Roaming |
0 ms |
| Data Rate | 6 Mbit/s shared between clients |
| Payload per Ethernet Frame |
1500 Bytes |
| Reliability | 99.9999 % for specified latency and data rate |
Connections
| Power Supply | 12 – 48 V DC or PoE 802.3af |
| Power Consumption | ⌀ 4.8 W; max. 15 W |
| DC | M12, 5-pin, A-coded |
| Ethernet | M12, 8-pin, X-coded, 1 Gbit/s |
| Antennas | SMA female, 50 Ω |
| Operating Temperature | −20 °C to +60 °C |
| Degree of Protection | IP65 |
Security
| Data | 256-bit authenticated encryption |
| Device | Integrity through secure boot and encrypted firmware |
Mechanical Data
| Dimensions Excl. Antennas | 140mm × 160mm × 39mm |
| Mounting | Wall mounting 0.7kg |
