$2,075.00

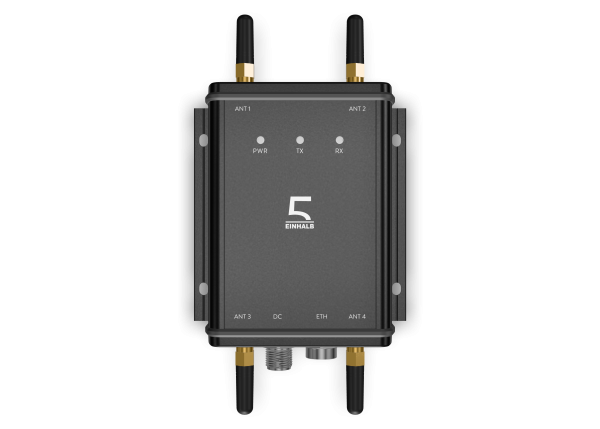

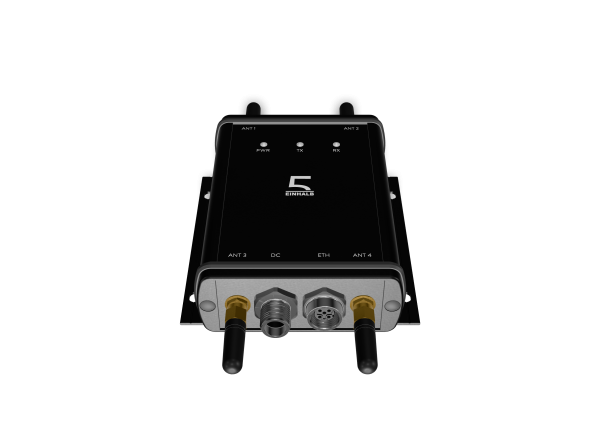

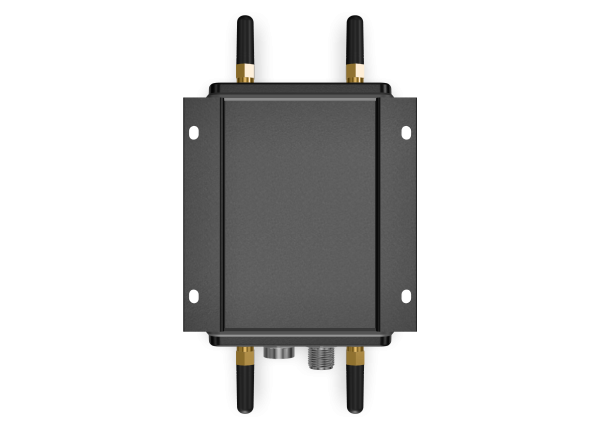

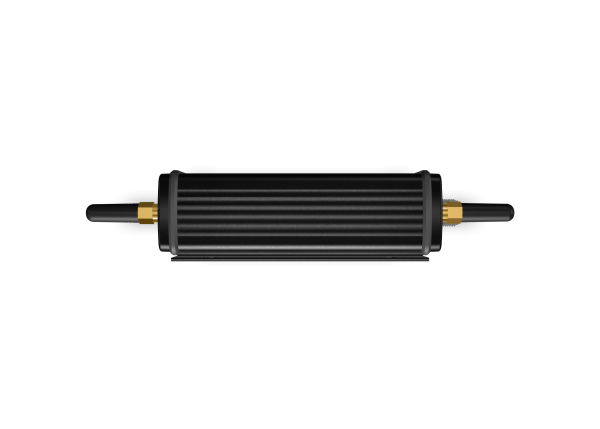

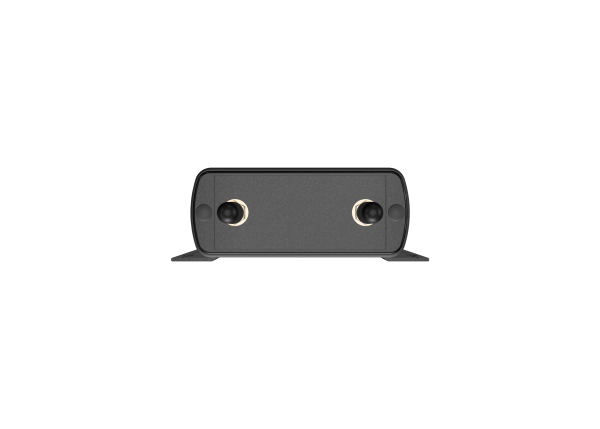

BlitzFunk is a realtime-WLAN system for highly reliable switched Ethernet communication with consistent low latency in the millisecond range. A BlitzFunk network consists of access points and clients. It serves as a drop-in replacement for existing wired installations and enables high-mobility applications with seamless handover. Ethernet-based protocols, including PROFINET, PROFIsafe and OPC-UA, are supported out of the box.
Manufacturer: Fuenfeinhalb / Country of Origin: Germany
SKU:
Wireless Features
| Frequency Spectrum | 2412 MHz – 2462 MHz 5180 MHz – 5240 MHz 5745 MHz – 5865 MHz 5955 MHz – 6415 MHz |
| Bandwidth | 2 × 20 MHz |
| Quality of Service | |
| Maximum One-Way Latency | 4 ms for 1 client |
| +2 ms per additional client | |
| Additional Latency during Roaming |
0 ms |
| Data Rate | 6 Mbit/s shared between clients |
| Payload per Ethernet Frame |
1500 Bytes |
| Reliability | 99.9999 % for specified latency and data rate |
Connections
| Power Supply | 12 – 48 V DC or PoE 802.3af |
| Power Consumption | ⌀ 4.8 W; max. 15 W |
| DC | M12, 5-pin, A-coded |
| Ethernet | M12, 8-pin, X-coded, 1 Gbit/s |
| Antennas | SMA female, 50 Ω |
| Operating Temperature | −20 °C to +60 °C |
| Degree of Protection | IP65 |
Security
| Data | 256-bit authenticated encryption |
| Device | Integrity through secure boot and encrypted firmware |
Mechanical Data
| Dimensions Excl. Antennas | 130mm × 100mm × 36mm |
| Mounting | Wall mounting 0.4kg |
