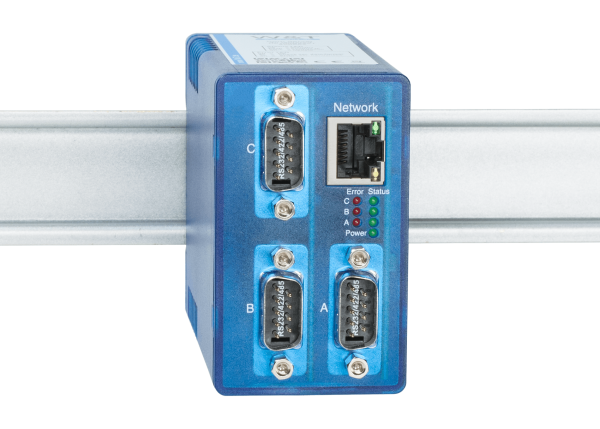

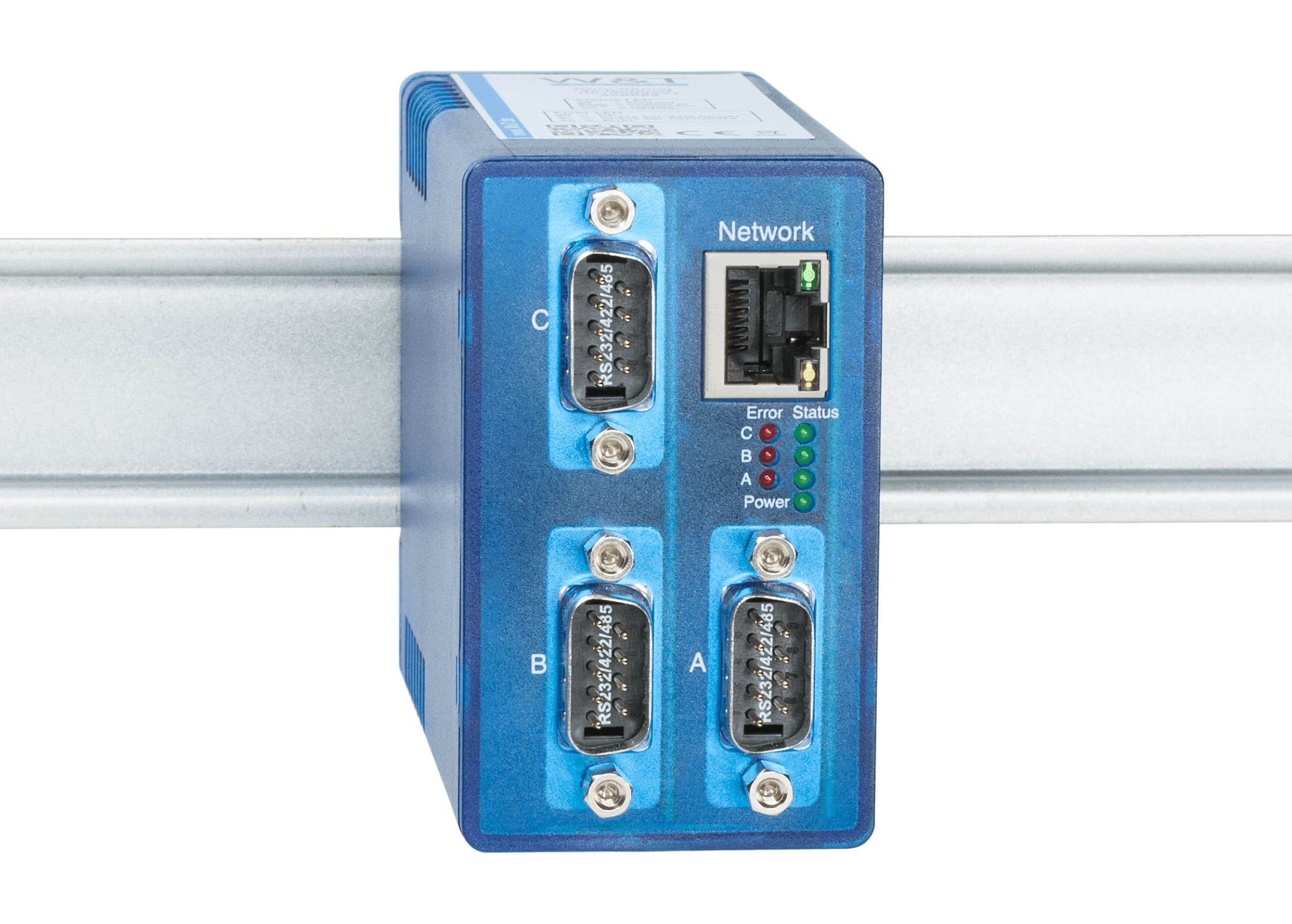

Com-Server PoE 3x Isolated

Interfaces:

• 3 x RS232/422/485 selectable
• 1 x Ethernet 10/100BaseT
  • Autosensing/Auto-MDIX
• Alternate model with 20mA/TTY: Com-Server 20mA

Management and connectivity:

• Remote configuration
  • Startup using WuTility (three clicks and you’re done), DHCP, serial
  • Web-Based-Management
  • Telnet
  • Control sockets from your own applications
• Transparent communication
  • Windows COM Port Redirector and virtual COM ports with optional TLS-PSK encryption
  • Box-to-Box, optional TLS encrypted
  • TCP server sockets from your own applications, optionally TLS-PSK encrypted
  • OPC server
• Expanded protocol support
  • FTP client / server
  • Telnet client / server
  • UDP Peer
  • SLIP

Power supply:

• External
  • Screw terminals, 12V-48V DC

• Power-over-Ethernet (PoE)
  • Phantom power using data pairs
  • Power over unused wire pairs

Standards & more

• Conforms to standards both in office and industrial environments:
  • High noise resistance per EN 61000-6-2
  • Low noise emission per EN 55032:2015 + A1 Cl. B, EN 61000-3-2 & EN 61000-3-3
• 5 year guarantee

Windows COM Port Redirector

Install the COM Port Redirector and configure your serial program on one of the virtual COM ports – done! Regardless of whether as a replacement for missing hardware COM ports, a solution for virtual environments such as VMware, HyperV, etc. or as a simple line driver, your serial communication becomes network capable without a single line of programming and, if desired, TLS-PSK encrypted. Multipoint mode and packeting options are of course also available.
Data sheet with download link

Box-to-Box

In just a few clicks you can link 2 Com-Servers to each other logically and use an operating-system neutral, transparent and if desired TLS encrypted data tunnel through the network. Serial data are sent bi-directional and as fast as possible to the respective counterpart. Automatic reconnect functions in case of connection faults/dropouts are available as are multipoint operation and packeting options for fine tuning when using serial protocols.
To application example …

TCP/UDP socket communication

Network programming is today part of the standard repertoire of all programmers. Integrate your serial device easily into your own network application. Take connection control into your own hands as a TCP client, be contacted event-driven as a TCP server (optional with TLS-PSK encryption) or use the efficient, connectionless UDP protocol. Of course new multipoint operation and packeting options are also available here.
To application example …

FTP client/server

Send and archive your serial data with the FTP standard tools on most operating systems. Serial outputs from scales, barcode readers etc. or status and error messages for example from UPSs are classic applications for the use of Com-Servers as FTP server or FTP client.
To application example …

Multipoint mode

Distribute the send data from your serial device to as many as six network stations at a time. Regardless of whether you want to archive or monitor, copies of the serial data can be retrieved on a configurable slave port. Filters for the authorized IP addresses are provided to protect against unauthorized access.

Packeting options

Received serial protocols are often sensitive to pauses in the serial data flow. In order to avoid such timeouts and ensure complete transmission of the datagrams in a network packet, the Com-Server 3x Isolated offers numerous configuration options for detecting datagram limits (start/end characters, start + length, etc.).

Connections and displays:

• Serial port:
  • 3x RS232/422/485 interface, selectable
  • DB9 connector plug
  • 50 to 230.400 baud
  • 7,8 data bits
  • 1,2 stop bits
  • Parity No, Even, Odd
  • Flow control No, RTS/CTS, Xon/Xoff
• Serial modes:
  • RS232
  • RS422 4-wire bus master
  • RS485 4-wire bus master
  • RS485 4 wire with automatic control
  • RS485 2 wire with automatic control
• Network:
  • 10/100BaseT Autosensing/Auto-MDIX
  • RJ45
  • IPv6 on request
• Galvanic isolation:
  • Network connection: MIN. 1500 V
  • Serial ports: 1 kV mutually and with respect to the supply
• Supply voltage:
  • Power-over-Ethernet (PoE) or
  • DC 12V .. 48V (+/-10%) or AC 9Veff .. 24Veff (+/-10%)
• Supply connection:
  • Plug-in screw terminal, 5.08mm spacing
  • Labeled “L+” and “M”
• Current consumption:
  • PoE Class 1 (0.44 – 3.84W)
  • typ. 110mA @24V DC when externally powered
• Displays:
  • 1 LED Power
  • 3 LEDs Status
  • 3 LEDs Error
  • 2 LEDs Network Status

Housing and other data:

• Housing:
  • Plastic compact housing for top-hat rail mount
  • 105x45x75mm (l x w x h)
• Enclosure rating:
  • IP20
• Weight:
  • approx. 180 g
• Ambient temperature:
  • Storage: -40..+70°C
  • Operating 0..+60°C (70°C on request)
• Permissible relative humidity:
  • 5..95% RH, non-condensing
• Scope of delivery:
  • 1x Com-Server 3x Isolated
  • 1x Quick Guide
