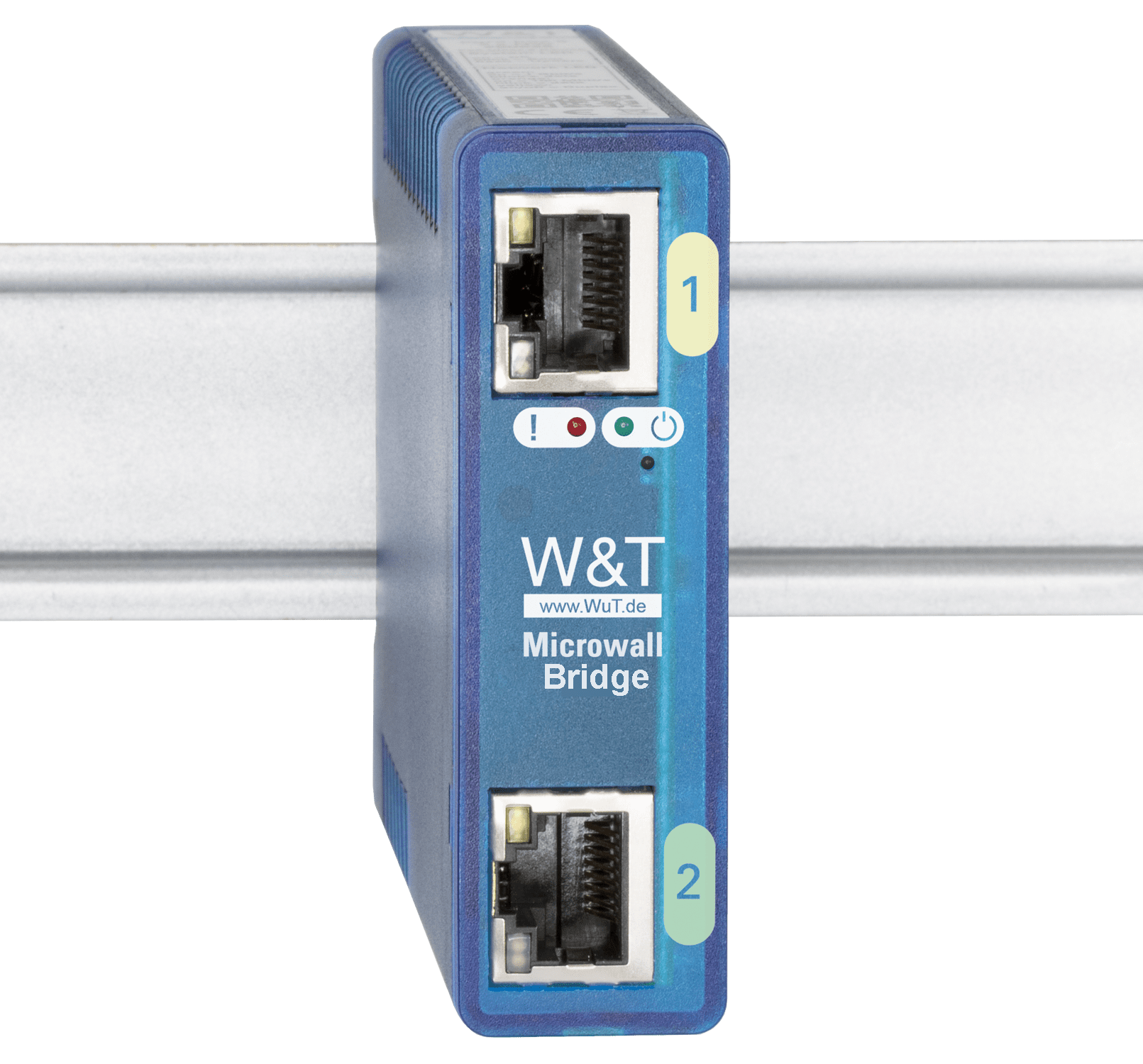

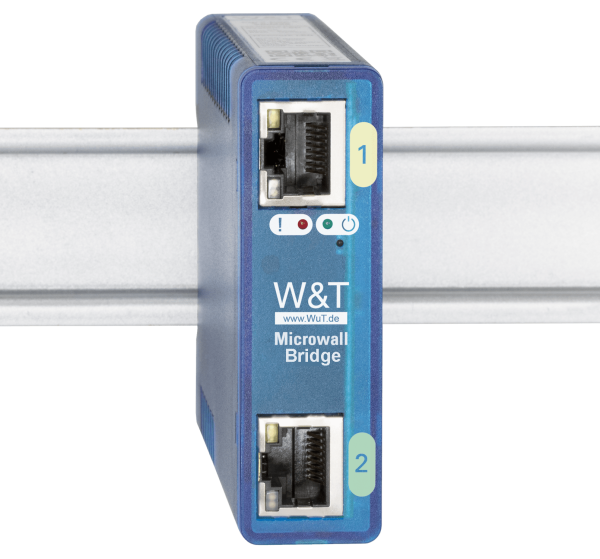

Microwall Bridge (Firewall)


Firewall bridge without modifying the IP setup

The Microwall Bridge segments sensitive network areas without changing the IP configuration of the components which have been isolated. The preferred area of application is therefore the easiest possible, add-on security expansion of existing infrastructures.

Manufacturer: Wiesemann & Theis / Country of Origin: Germany



  • 2x Ethernet 100/1000BaseT
    • Autosensing and Auto-MDIX
  • High data throughput
    • Gigabit Ethernet
    • max. 900MBit/s
    • Low latency times thanks to powerful hardware platform


  • Implementation as bridge
    • No intervention in the routing concept of the network
    • No intervention in the IP configuration of the associated devices
  • Consistent whitelist-based firewall concept
    • Filter rules based on IPv4 addresses and TCP/UDP port numbers
  • Logging
    • Identification of undesired communication attempts

Management & Security:

  • Secure firmware concept with Secure Boot
    • No uploading of manipulated firmware or third-party firmware
  • Configuration via HTTPS-Only Mode
    • Supports individual certificates
    • Fast startup using WuTility or DHCP
    • Required password without default login
  • Port management for all local services
    • All service/management services can be configured/deactivated
  • Network management systems
    • Optional support for SNMPv2c/3 (read)

Supply Voltage

  • External power
    • Screw terminals, 24V-48V DC
  • Power-over-Ethernet (PoE)

Standards & more

  • Conforms to standards both in office and industrial environments:
    • High noise resistance for industrial environments
    • Low noise emission for residential and business areas
  • 5 year guarantee

Technical data:

Connections and displays:

  • Network:
  • Data throughput:
    • max. 900MBit/s
  • Galvanic isolation:
    • Network connections min. 1500 V
  • Supply voltage:
    • Power-over-Ethernet (PoE) or
    • DC 24V .. 48V (+/-10%) and
  • Supply connection:
    • Plug-in screw terminal, 5.08mm spacing
    • Labeled “L+” and “M”
  • Current consumption:
    • PoE Class 2 (3.84 W to 6.49 W)
    • or for external supply:
    • typ. 150mA @24V DC
    • max. 200mA @24VDC
  • Indicators:
    • 2x LEDs for network status
    • 1x LED for Error

Housing and other data:

  • Housing:
    • Plastic compact housing for top-hat rail mount
    • 105x22x75mm (LxWxH)
  • Enclosure rating:
    • IP20
  • Weight:
    • approx. 120g
  • Ambient temperature:
    • Storage: -40..+85°C
    • Operating 0..+50°C (no stack mounting)
  • Permissible relative humidity:
    • 5..95% RH, non-condensing
  • Scope of delivery:
    • 1x Microwall Bridge
    • 1x Quick Guide
Weight 0.2 kg
