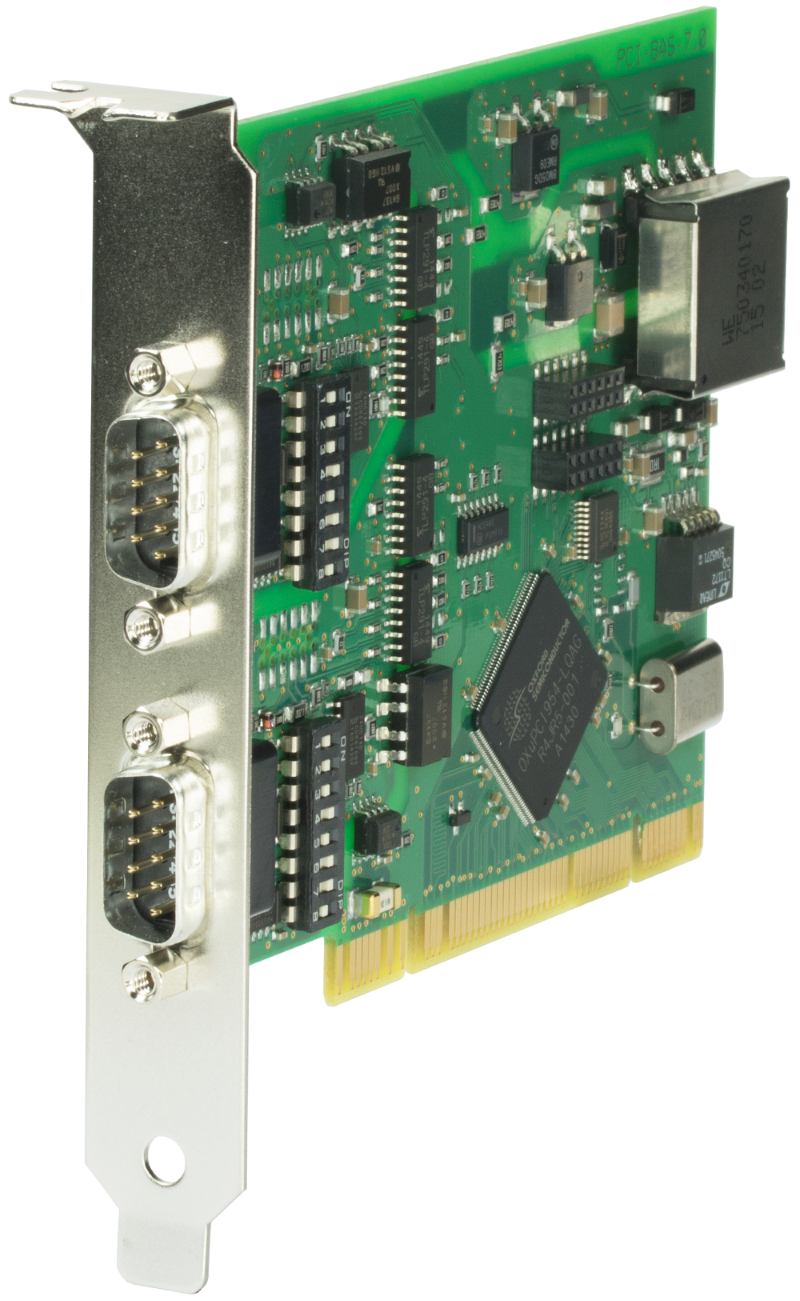

PCI Card 2x RS232/RS422/RS485

$470.00

Two additional RS232/422/485 ports with galvanic isolation

The 13621 PC card expands your PC with two independent galvanically isolated RS232/422/485 interfaces.

Manufacturer: Wiesemann & Theis / Country of Origin: Germany

SKU:

13621

More details

- Interfaces:
  - 2x RS232/RS422/RS485 interfaces
  - 1x 32-bit PCI bus
    - for 3.3V & 5V PCI systems
  - Galvanic isolation between PC, Port 1 and Port 2
    - Isolation voltage 1kV
  Management and connectivity:
  - Dual UART PI7C8952 with 128 byte FIFO
  - Plug-and-play: automatic configuration of base address and interrupt
  Standards & more
  - Conforms to standards both in office and industrial environments:
    - High noise resistance per EN 61000-6-2
    - Low noise emission per EN 55032:2015 + A1 Cl. B, EN 61000-3-2 & EN 61000-3-3
  - 5 year guarantee
- Connections and displays:
  - System bus:
    - 32-bit PCI bus / 33MHz / Universal Voltage
  - Serial port:
    - 2x RS232/RS422/RS485 interfaces
    - 9-pin SUB-D adapter
  - Operating modes:
    - RS232
    - RS422
    - RS485 2/4 wire with handshake control
    - RS485 2/4 wire with automatic control
  - Maximum baud rate
    - 230.400 kbaud
  - Data format
    - any format
  - Signals:
    - RxD, TxD, CTS, DTR
  - Handshake:
    - No, RTS/CTS, Xon/Xoff
  - UART:
    - 16950 with 128-byte FIFO
  - Galvanic isolation:
    - Isolation voltage min. 1kV DC
    - between PC and the serial ports (1 and 2)
  - Supply voltage:
    - 3V DC, 5V DC, 12V DC
  - Current consumption:
    - typ. 200mA @ 3V
    - typ. 200mA @ 5V
    - typ. 100mA @ 12V
  Housing and other data:
  - Dimensions:
    - 134 x 120mm (W x H)
  - Enclosure rating:
    - IP00
  - Weight:
    - approx. 105g
  - Ambient temperature:
    - Storage: -40..+70°C
    - Operating: 0..+70°C
  - Permissible relative humidity:
    - 5..95% RH, non-condensing
  - Scope of delivery:
    - PCI Card 2x RS232/RS422/RS485
    - Quick start manual
