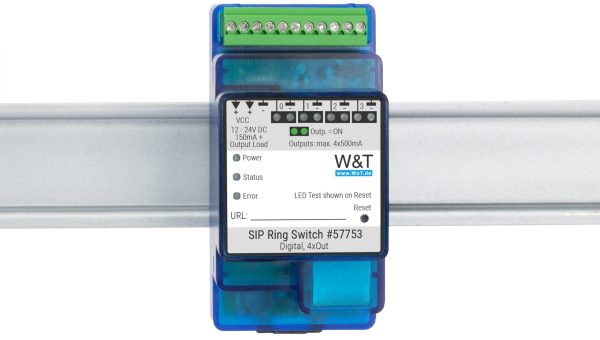

SIP Ring Switch 4xOut (call to switch)

$798

Use the SIP Ring Switch with Voice-over-IP telephone network and systems to call specific extensions and trigger switching actions. There are 4 separte switching channels available. This means you can select certain call numbers to operate for example door openers, barriers and lights.

Manufacturer: Wiesemann & Theis / Country of Origin: Germany

SKU:

57753

More details

Switching signals:

4 switching outputs
- 24V technology
- Switching of 230V and other voltages possible using coupling relays
- Switching currents up to 500mA
- Turn on, off or toggle
- Output switching pulses

Connectivity:

Intuitive Web interface for simple setup
- Select between German or English
- Switching outputs also directly from the web interface
- Adapted representation for smart phones
- HTTP and HTTPS
Compatible with current Voice-over-IP solutions:
- e.g. Asterisk
Help access
- Switching via HTTP requests
- Switching via TCP sockets
Alarm and reporting functions:
- Email when dialing certain numbers
- FTP log of when which output was switched
- HTTP request for controlling third-party devices such as cameras
- Up to 30 actions can be configured
Dynamic integration into other Web sites:
- Direct access to current states via HTTP requests, AJAX and JavaScript
Internal clock
- Time synchronization via time server calibration
- Battery-backed device clock
Possible applications:
- Gate, door and barrier control
- Cross-location switching
- House and building automation
- Light control

Power supply:

External power
- Screw terminal
- 12 – 24V DC

Standards & more

Conforms to standards both in office and industrial environments:
- High noise resistance for industrial environments
- Low noise emission for residential and business areas
5 year guarantee

Connections, displays and control elements:
Digital outputs:		4 switching outputs
		Output for 12-24V, max. 500mA
		max. total current 2A
		Using our coupling relays voltages of even up to 230V can be switched
		Integrated 32-bit counter for switching operations
Network:		10/100BaseT autosensing
Power supply:		12-24V DC (approx. 100mA@24V)
Galvanic isolation:		Digital in-/outputs – network: min. 1000 V
Connections:		1 x 11x screw terminal for IOs and supply 1 x RJ45 for network
Indicators:		Status LEDs for network
		4 LEDs for digital status
Data transmission:
Protocols:		HTTP and HTTPS
		SIP
		TCP sockets
		SMTP e-mail sending
		FTP
		Inventory keeping, group management
Response times:		Data and switching traffic: typically 12 ms
Housing and other data:
Housing:		Plastic housing for top hat rail installation precise fit for sub-distribution systems
		90x45x56mm (lxwxh)
Enclosure rating:		IP20
Weight:		approx. 140 g
Storage temperature:		-25°C – 70°C
Operating temperature:		0°C – 60°C
Permissible relative humidity:		5..95% RH (non-condensing)
Scope of delivery:		1 x SIP Ring Switch, 4xOut 1 x Quick Guide Power supply and other accessories can be ordered separately
