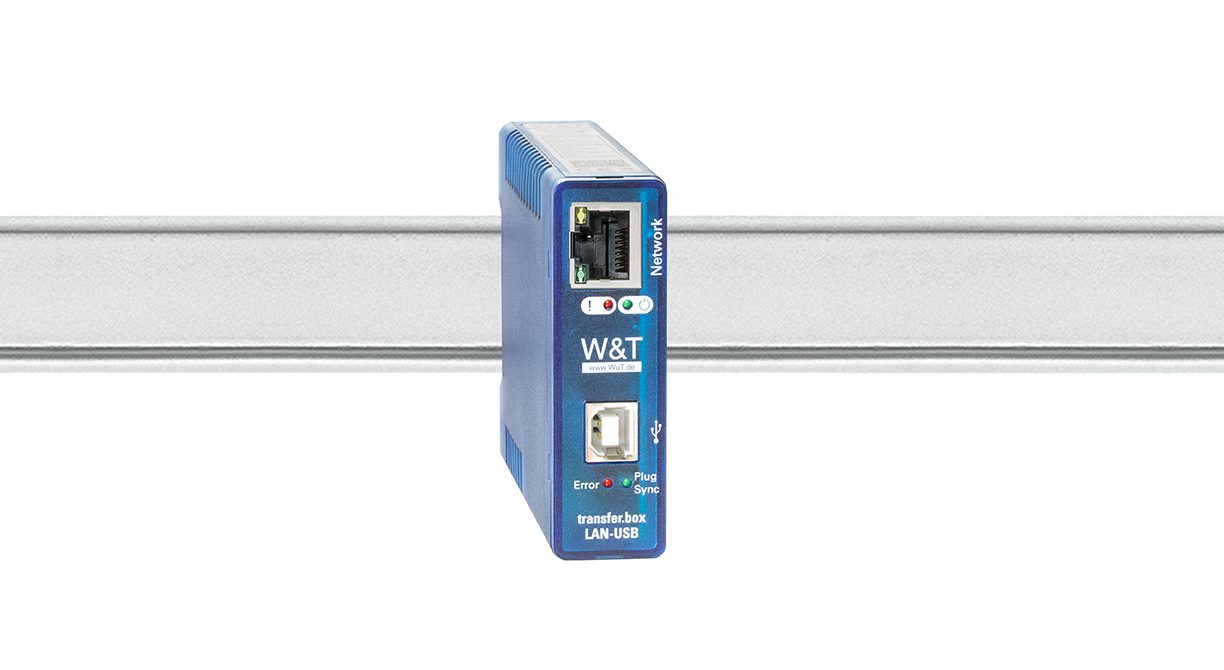

LAN-USB (USB memory with network connection)


The LAN-USB can both store data and send it from USB devices over the Internet. It is actually a USB memory with network interface. Whereas locally connected USB sticks or USB drives are a “dead-end street” in terms of data technology, the enables two-ended access in that the data memory can be read and written both over the network and via USB.If the is connected to a host system via USB, for example to a CNC milling machine, the machine can use it as a USB mass storage device. On the network side Samba, FTP and SSH can be used to access the same memory area of the box.

This allows you to make machines and devices which have no network connection but rather only a USB terminal for storage media quasi-network capable even without the network connection. There is no physical transport of the USB memory between the PC and machine, since the data are written over the network directly to the USB memory of the box and can be read by it.

Manufacturer: Wiesemann & Theis / Country of Origin: Germany


  • 1 x network
  • 1 x USB

Management and connectivity:

  • Configuration
    • Startup using WuTility (three clicks and you’re done)
    • Web-based management
  • Application
    • USB memory with network connection
    • Network access via Samba (SMB), FTP and SSH

Power supply:

  • External power
    • Screw terminal
  • Power over Ethernet (PoE)
    • Phantom power using data pairs
    • Power over unused wire pairs

Standards & more

  • Conforms to standards both in office and industrial environments:
    • High noise resistance for industrial environments
    • Low noise emission for residential and business areas
  • 5 year guarantee

Connections and displays:

  • Network:
    • 1 x 100/1000BaseT Autosensing/Auto-MDIX, RJ45
  • USB:
    • 1 x USB 2.0 (Type B female)
  • Galvanic isolation:
    • RJ45 network connection min. 1500 V
  • Supply voltage:
    • Power over Ethernet (PoE) or
    • 24 … 48V DC (+/-10%) per screw terminal
  • Supply connection:
    • Plug-in screw terminal
  • Current consumption:
    • PoE Class 2 (3.84 … 6.49W) and
    • typ. 140mA @ 24V DC with external supply
  • Indicators:
    • LEDs for System, Error, Network and USB status

Hard- and software

  • Processor and memory:
    • Marvell 88F6820
    • Flash: 8GB (eMMC)
    • RAM: 1 GB (DDR3)
  • Operating system:
    • BusyBox: v1.31.1
    • Kernel: v5.4.110
  • Services:
    • SMB (Samba: v3.6.25, SMBv1 and SMBv2)
    • FTP (ProFTP: v1.3.6)
    • SSH
  • USB memory:
    • 2.5GB (Fat32)

Housing and other data:

  • Housing:
    • Plastic housing with integrated DIN rail mount
    • 105 x 22 x 75mm (L x W x H)
  • Weight:
    • approx. 120g
  • Storage temperature:
    • -40 … +70°C
  • Operating temperature:
    • 0 … 60°C
  • Permissible relative humidity:
    • 0 … 95% relative humidity, non-condensing
  • Scope of delivery:
    • LAN-USB
    • USB connection cable
    • Quick start manual
Weight 0.2 kg
