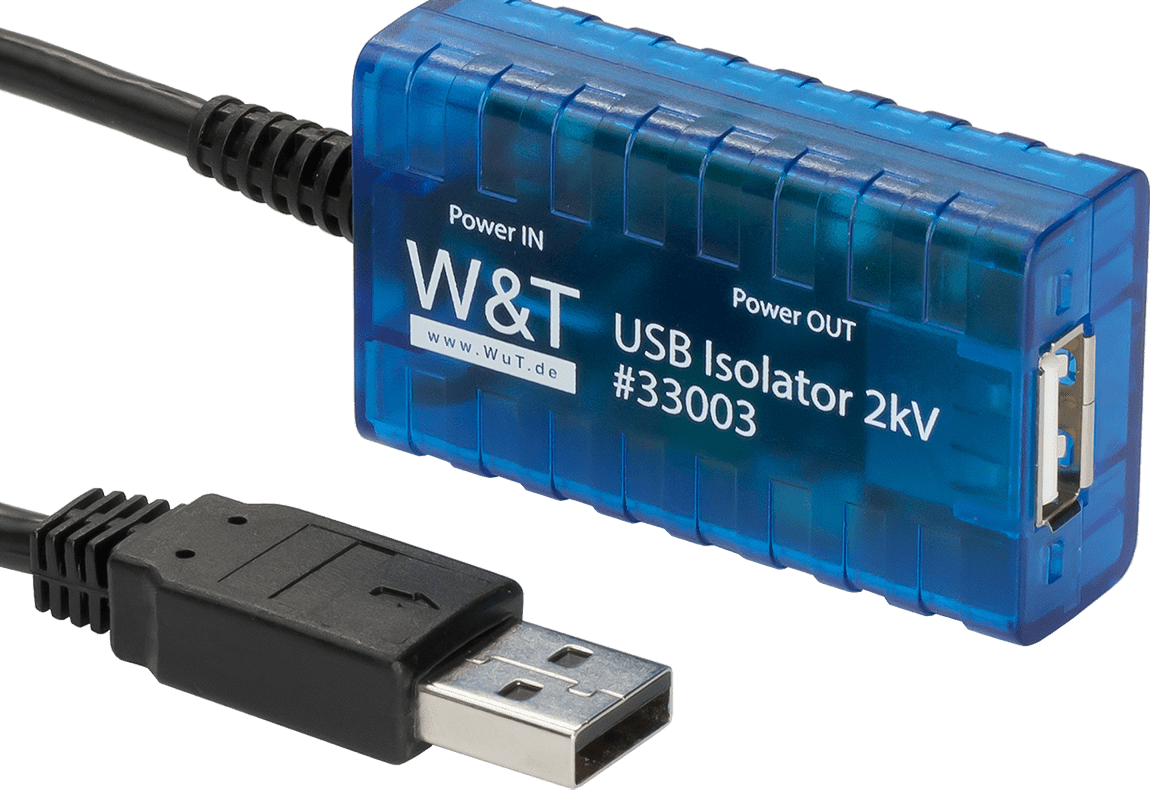

USB Isolator 2kV Hi-Speed

$308

The High-Speed W&T USB Isolator model #33003 galvanically isolates USB 2.0 connections from the USB host to protect the USB interface and connected devices. All USB 2.0 speeds (Low, Full and High Speed) are supported. The negotiated bus speed is automatically detected.

The Isolator works fully transparently and requires no additional drivers.

Manufacturer: Wiesemann & Theis / Country of Origin: Germany

SKU:

33003

More details

Interfaces:

1 x USB socket, type A
1 x USB male, Type A
Galvanic isolation between the ports
- Isolation voltage min. 2kV DC

Management and connectivity:

Full USB 2.0 support (Low, Full and High Speed up to 480 Mbps)
Automatic bus speed detection
Solution integrated into USB cable for plug-in

Power supply:

External supply voltage for the downstream side
- enables connection of power-hungry USB devices

Standards & more

Conforms to standards both in office and industrial environments:
- High noise resistance per EN 61000-6-2
- Low noise emission per EN 55032:2015 + A1 Cl. B, EN 61000-3-2 & EN 61000-3-3
5 year guarantee

Connections and displays:

USB port:
- 1x Type A male
- 1x Type A female
USB speed:
- Automatic detection of
- Low Speed (1.5 Mbps)
- Full Speed (12 Mbps)
- High Speed (480 Mbps)
Galvanic isolation:
- Isolation voltage min. 2kV DC
Supply voltage:
- +5V DC
Current consumption:
- depending on the connected device:
  - – Idle: typ. 20 mA
  - – Low Speed: typ. 20 mA
  - – Full Speed: typ. 20 mA
  - – High Speed: typ. 100 mA
  - plus device power up to max. 900 mA
Supply connection:
- USB Type C – socket
Indicators:
- 1x LED Power IN
- 1x LED Power OUT

Housing and other data:

Housing:
- Plastic small housing
- 55 x 31 x 16 mm (L x W x H)
Enclosure rating:
- IP20
Weight:
- approx. 35 g
Ambient temperature:
- Isolator:
- Storage: -40..+70 °C
- Operating: 0..+70 °C
- Power supply:
- Storage: -40..+70 °C
- Operating: 0..+40 °C
Permissible relative humidity:
- 5..90% relative humidity, non-condensing
Scope of delivery:
- USB Isolator 2 kV
- USB power supply 5V / 1.0 A (only with Euro plug)
- Manual
