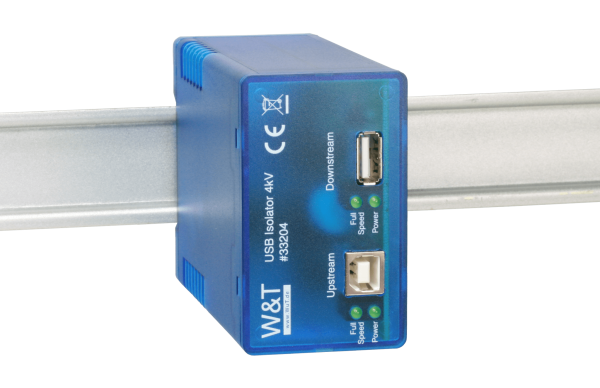

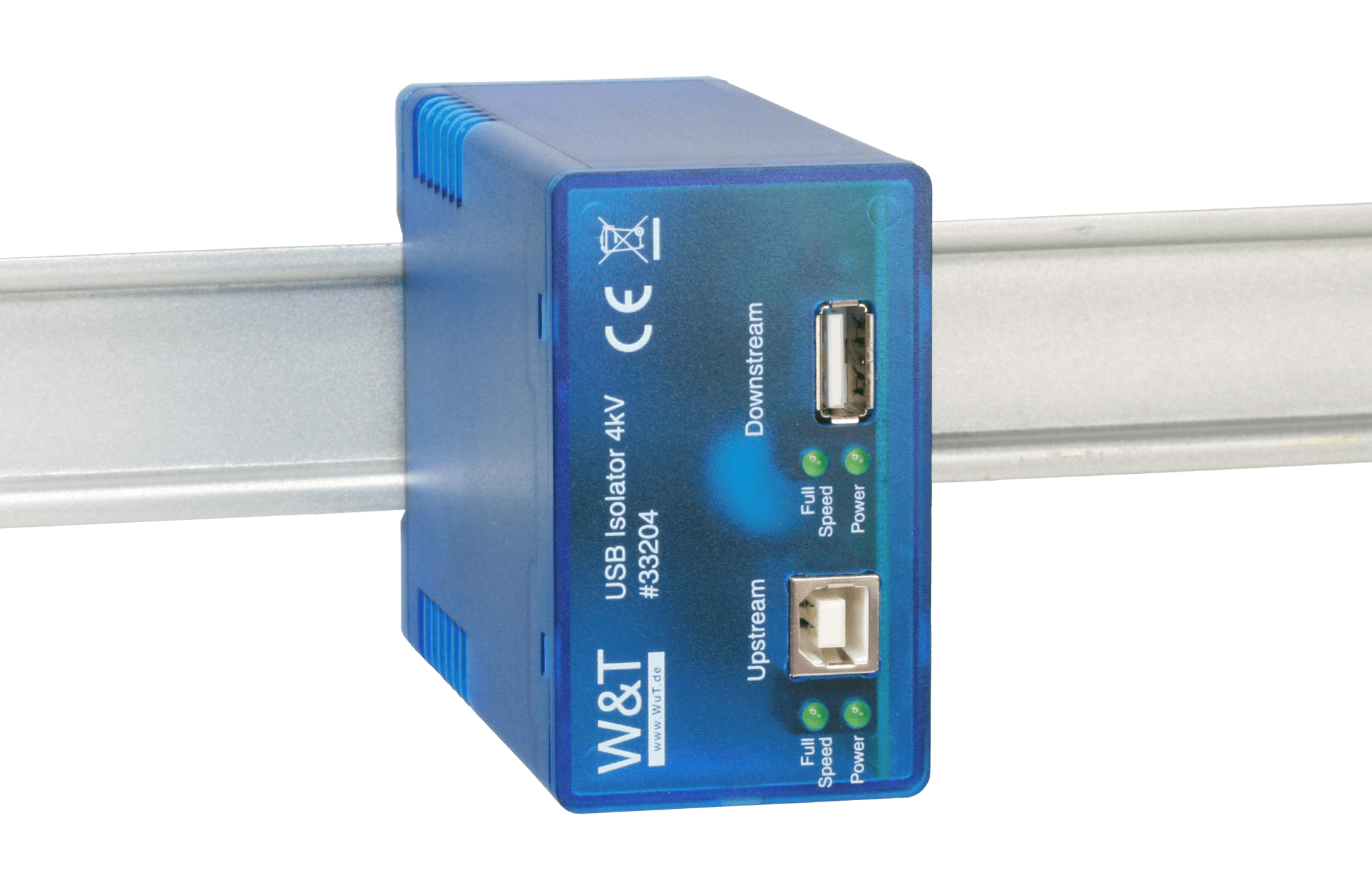

This industry 4kV USB Isolator (#33204) galvanically isolates Low-Speed and Full-Speed connections from the USB host and protects the background hardware.
Manufacturer: Wiesemann & Theis / Country of Origin: Germany
SKU:
33204
More details
Interfaces:
1 x USB socket, type A
Downstream port
1 x USB plug, type B
Upstream port
Galvanic isolation between the ports
Isolation voltage min. 4kV DC
Management and connectivity:
Multi-stage filtered output voltage allows low-current galvanic decoupling of USB audio equipment
Supports low-speed and full-speed USB devices
Full Speed (12 MBit/s), Low Speed (1,5 MBit/s)
No additional software drivers necessary
Housing suitable for installation on top hat rails
Solution integrated into USB cable for plug-in
Power supply:
Supply voltage for Isolator and terminal device provided by USB
Optional external voltage supply on the upstream side. This option allows connecting of power-hungry USB devices with a load current of up to 1A without affecting the isolation voltage
Standards & more
Conforms to standards both in office and industrial environments:
High noise resistance per EN 61000-6-2
Low noise emission per EN 55032:2015 + A1 Cl. B, EN 61000-3-2 & EN 61000-3-3
5 year guarantee
USB interface:
USB interfaces in stationary computers unfortunately have the basic drawback of having no galvanic isolation for the signal lines.In many applications in the consumer world this limitation is irrelevant, since the USB devices connected to the PC are generally supplied through the bus and do not have any reference to a second ground or to the ground conductor.In the areas of measurement reading, process control or for example medical technology, galvanic isolation of the connected devices is mandatory in order to prevent ground loops on the USB line.To this end W&T offers a family of USB isolators which differ in their mechanical configuration and in their supply voltage and amount of isolation voltage.The output voltage from the 4kV Isolator is routed on the galvanically isolated side through a multi-stage L-C filter. The filtered output voltage means the Isolator is also ideal for isolating high-quality USB audio equipment.
