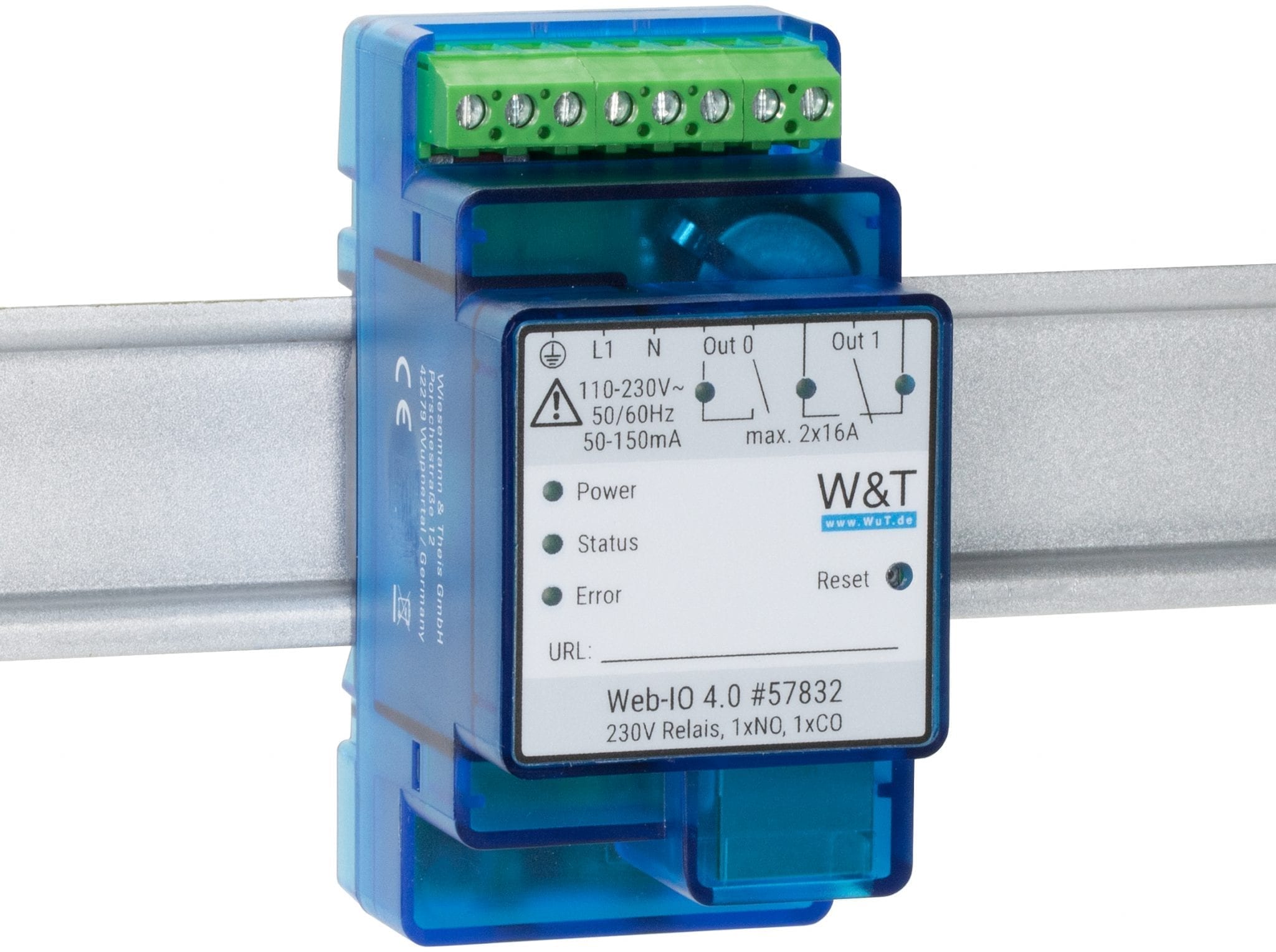

Web-IO 4.0 230V Relay 1xNO, 1xCO

$430.00

With the Web-IO 4.0 230V Relay 1xNO, 1xCO 230V switching signals can be controlled via TCP/IP Ethernet. There are numerous Web and network services available for switching up to 16A with the two integrated relays – even directly from the browser or from a smart phone. Using protocols such as OPC UA, MQTT and REST the Web-IO is an ideal fit in the world of Industry 4.0 and the Internet of Things.

Manufacturer: Wiesemann & Theis / Country of Origin: Germany

SKU: 57832 Categories: ,

Switching signals:

  • 2 switching outputs:
    • 1 x potential-free normally open contact for 230V mains
    • 1 x potential-free changeover contact for 230V mains
    • Switching currents up to max. 16A

Connectivity:

  • Intuitive Web interface for simpler operation
    • Select between German or English
    • Switching the outputs directly from the Web interface
    • Adaptation for smartphone
    • HTTP and HTTPS
  • Current Industry 4.0 protocols:
    • OPC UA, REST and MQTT support
    • AMQP on request
  • Box-to-Box
    • Pass switching signals over the network 1:1
  • Alarm and reporting functions:
    • Email for alarm sending or as status report
    • SNMP polling / alarm traps V1 V2 V3
    • Switching your outputs in alarm situations
    • Switching the outputs on another Web-IO
    • HTTP requests for controlling third-party devices
    • Up to 30 actions can be configured
  • Dynamic integration into other Web sites:
    • Direct access to the contacts via HTTP requests, AJAX and JavaScript
  • Additional software interfaces for incorporating into your systems/databases:
    • OPC UA, OPC DA
    • Modbus TCP
    • Syslog, SNMP V1 V2 V3
    • TCP and UDP sockets, client and server
    • HTTP, HTTPS, AJAX
    • FTP (data logging)
  • Internal clock
    • Time synchronization via time server calibration
    • Battery-backed device clock
  • Possible applications:
    • Cross-location switching
    • House and building automation
    • Light, gate and cabinet control
    • More uses can be found here.

Power supply:

  • External power
    • Screw terminal
    • 230V AC (50Hz)

Standards & more

  • Conforms to standards both in office and industrial environments:
    • High noise resistance per EN 61000-6-2
    • Low noise emission per EN 55032:2015 + A1 Cl. B, EN 61000-3-2 & EN 61000-3-3
  • 5 year guarantee

Connections, displays and control elements:

  • Digital switching outputs:
    • 1 x potential-free normally open contact, max. 16A
      1 x potential-free changeover contact, max. 16A
  • Network:
    • 10 / 100BaseT autosensing
  • Power supply:
    • 230V AC (approx. 15mA@230V)
  • Galvanic isolation:
    • Digital output to network: min. 1000 V
  • Connections:
    • 1 x 8x screw terminals for power and IOs
    • 1 x RJ45 for network
  • Indicators:
    • Status LEDs for network
    • 2 LEDs for switching states

Data transmission:

  • Protocols:
    • HTTP and HTTPS
    • TCP and UDP sockets, client and server
    • MQTT – Publish and Subscribe
    • REST
    • SNMP V1 V2 V3 including traps
    • SMTP e-mail sending
    • OPC server
    • Modbus TCP
    • Inventory keeping, group management
  • Response times:
    • Data and switching traffic: typically 12 ms

Housing and other data:

  • Housing:
    • Plastic housing for top hat rail installation
    • 90x45x56 mm (LxWxH)
  • Enclosure rating:
    • IP20
  • Weight:
    • approx. 140 g
  • Storage temperature:
    • -25°C – 70°C
  • Operating temperature:
    • 0°C – 40°C
  • Permissible relative humidity:
    • 5% – 95 % relative humidity (non-condensing)
  • Scope of delivery:
    • 1 x Web-IO 4.0 230V Relay 1xNO, 1xCO
    • 1 x Quick Guide
    • Power supply and other accessories can be ordered separately
MANUAL
TOOLS
FIRMWARE
ACCESSORIES
Weight 0.2 kg
