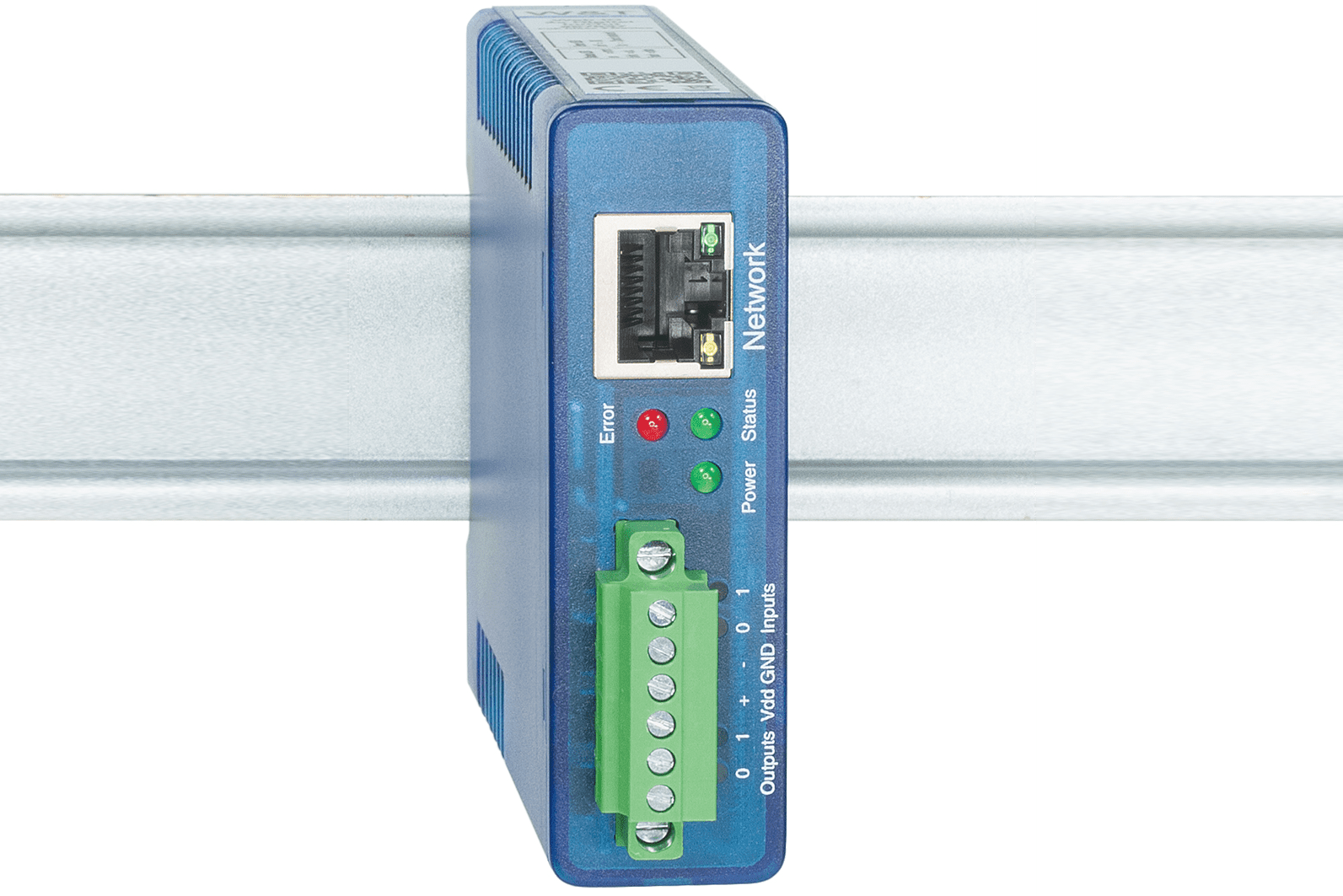

Web-IO 4.0 Digital 2x In / 2x Out

$599

Web-IOs are components for implementing small and medium-size remote IO and monitoring applications over TCP/IP Ethernet. Using configurable actions you monitor the in- and outputs and send e-mails when there are status changes or you can switch the outputs. With protocols such as OPC UA, MQTT and REST the Web-IO fits perfectly in the world of Industry 4.0 and the Internet of Things.

Manufacturer: Wiesemann & Theis / Country of Origin: Germany

SKU:

57737

More details

Switching signals:

2 switching inputs:
- Digital 24V inputs
- 32-bit pulse counter
2 switching outputs:
- Digital 24V outputs
  (12V, 48V, 110V, 230V via coupling relays)
- Drive up to 500mA
- Short-circuit-protected

Connectivity:

Intuitive Web interface for simpler operation
- Select between German or English
- Switching the outputs directly from the Web interface
- Adaptation for smartphone
- HTTP and HTTPS
Current Industry 4.0 protocols:
- OPC UA, REST and MQTT support
- AMQP on request
Box-to-Box
- Pass switching signals over the network 1:1
Alarm and reporting functions:
- Email for alarm sending or as status report
- SNMP polling / alarm traps V1 V2 V3
- Switching your outputs in alarm situations
- Switching the outputs on another Web-IO
- HTTP requests for controlling third-party devices
- Up to 30 actions can be configured
Dynamic integration into other Web sites:
- Direct access to current measurement values via HTTP requests. AJAX and JavaScript
Additional software interfaces for incorporating into your systems/databases:
- OPC UA, OPC DA
- Modbus TCP
- Syslog, SNMP V1 V2 V3
- TCP and UDP sockets, client and server
- HTTP, HTTPS, AJAX
- FTP (data logging)
Internal clock
- Time synchronization via time server calibration
- Battery-backed device clock
Possible applications:
- Remote monitoring and fault messaging
- Cross-location switching
- House and building automation
- Process monitoring and visualization
- Light, gate and cabinet control
- Machine Data Collection (MDC)
- More uses can be found here.

Power supply:

External
- Screw terminal
- 12 – 48V DC
Power-over-Ethernet (PoE)
- Phantom power using data pairs
- Power over unused wire pairs

Standards & more

Conforms to standards both in office and industrial environments:
- High noise resistance per EN 61000-6-2
- Low noise emission per EN 55032:2015 + A1 Cl. B, EN 61000-3-2 & EN 61000-3-3
5 year guarantee

Connections, displays and control elements:

Digital outputs:
- 2 x Digital Out 6V-30V, 500mA
- Grouping of 2 outputs
- Max. group current 1A
- Max. total current 1A
- Short-circuit-protected
- Using our coupling relays voltages of even up to
- 230V can be switched
Digital inputs:
- 2 x Digital In,
- max. input voltage +/-30V
- protected against reverse connection within this range
- Switching threshold 8V +/- 1.5V
- “On” current = 2.2 mA
- integrated 32-bit counter
Network:
- 10/100BaseT autosensing
Power supply:
- Power-over-Ethernet (PoE)
- or 24-48V DC (approx. 100mA@24V)
Auxiliary power output:
- 24V max. 125mA for IO supply
Galvanic isolation:
- Digital outputs – network: min. 1000 V
- Digital inputs – network: min. 2000 V
- Digital inputs – outputs: min. 1000 V
Adapters:
- 1 x 6x screw terminal for IOs – plug-in
- 1 x 2x screw terminal block for external power – plug-in
- 1 x RJ45 for network
Displays:
- Status LEDs for network
- 4 LEDs for digital status

Data transmission:

Protocols:
- HTTP and HTTPS
- TCP and UDP sockets, client and server
- MQTT – Publish and Subscribe
- REST
- SNMP V1 V2 V3 including traps
- SMTP e-mail sending
- OPC server
- Modbus TCP
- Inventory keeping, group management
Response times:
- Data and switching traffic: typically 12 ms

Housing and other data:

Housing:
- Plastic housing for top hat rail installation
- 105x22x75mm (LxWxH)
Enclosure rating:
- IP20
Weight:
- approx. 140 g
Storage temperature:
- -25°C – 70°C
Operating temperature:
- 0°C – 60°C
Permissible relative humidity:
- 5..95% RH (non-condensing)
Scope of delivery:
- 1 x Web-IO 4.0 Digital, 2xIn, 2xOut
- 1 x Quick Guide
- Power supply and other accessories can be ordered separately
