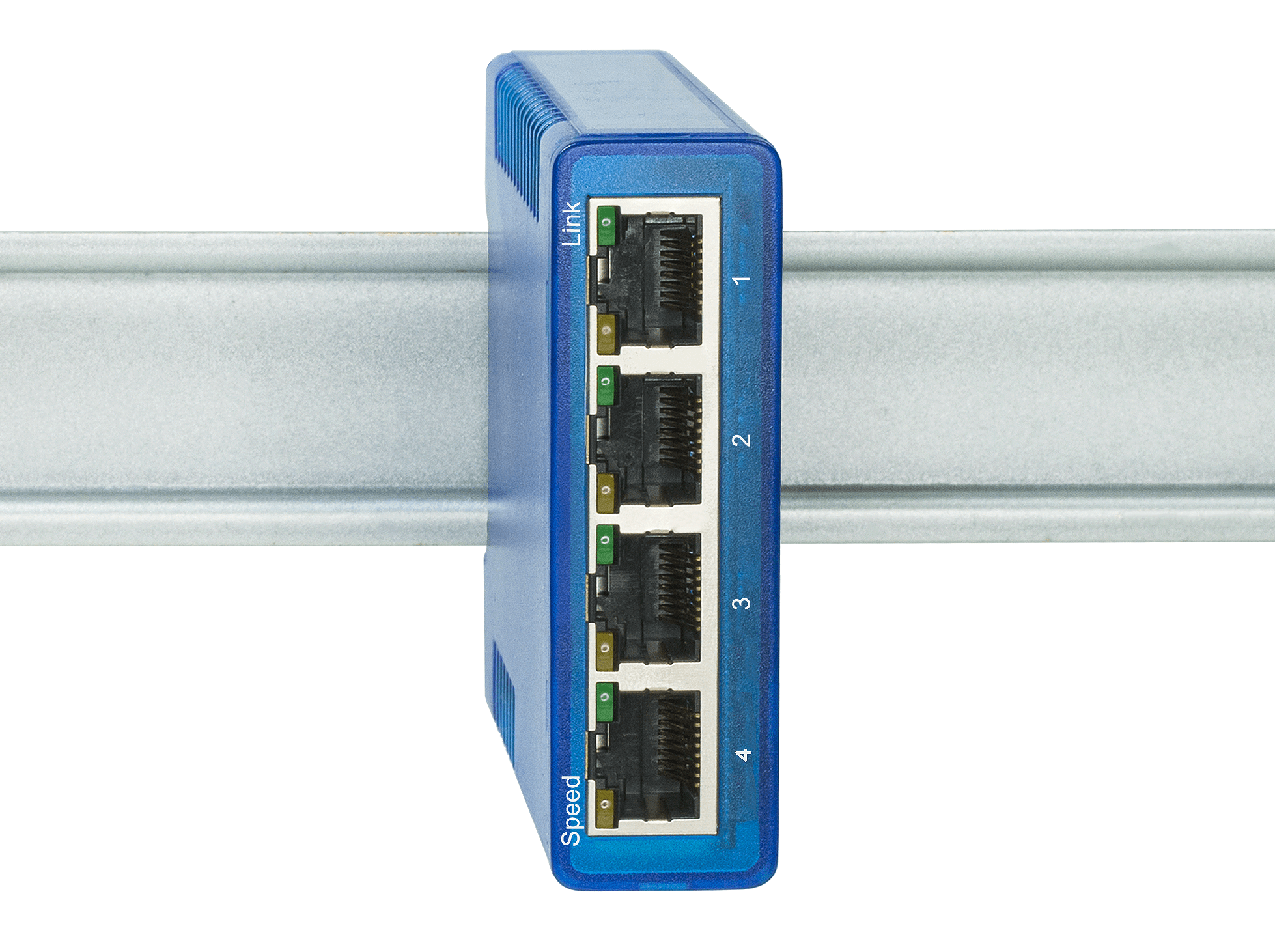

Ethernet Switch Gigabit Industry, 4 Port


Gigabit networking in the control cabinet with 24V supply voltage

The compact Industry Switch connects up to four network components in the control cabinet with a data rate of up to one Gigabit. A plug-in screw terminal brings 12-48V in for power. One port can be configured as a monitor port.

Manufacturer: Wiesemann & Theis / Country of Origin: Germany


  • 4x Ethernet 10/100/1000BaseT

Management and connectivity:

  • Port mirroring for network recordings
  • HUB mode selectable
  • Industrial grade with
    • noise immunity in accordance with EN 61000-6-2
    • Housing for DIN rail mounting
    • Operating temperature range 0…70°C

Power supply:

  • External power
    • Screw terminals, 12V-48V DC

Standards & more

  • Conforms to standards both in office and industrial environments:
    • High noise resistance per EN 61000-6-2
    • Low noise emission per EN 55032:2015 + A1 Cl. B, EN 61000-3-2 & EN 61000-3-3
  • 5 year guarantee

Narrow network expander:
A nearly full control cabinet and you still have 2-3 more network terminal devices to connect? The compact, 22mm wide switch is ideal for networking Com-Servers, Web-IOs, Web-Thermographs, USB Servers or other Ethernet terminal devices.

Connections and displays:

  • Network:
    • 4x 10/100/1000BT autosensing
    • Port mirroring for 1 port possible
    • HUB mode selectable
    • HP Auto MDI/MDI-X and IEEE Auto Crossover support
  • Galvanic isolation:
    • min. 1500 volts
  • Supply voltage:
    • Screw terminal: DC 12V .. 48V (+/-10%) and AC 18Veff .. 30Veff (+/-10%)
  • Current consumption:
    • typ. 150mA @24V DC

Housing and other data:

  • Housing:
    • Plastic compact housing for top-hat rail mount
    • 105 x 22 x 75mm (L x W x H)
  • Enclosure rating:
    • IP20
  • Weight:
    • approx. 200g
  • Ambient temperature:
    • Storage: -40..+70°C
    • Operating: 0..+70°C
  • Permissible relative humidity:
    • 5..95% RH (non-condensing)
  • Scope of delivery:
    • 4 Port Ethernet Switch Industry
    • Please order power supplies as separate accessories.
Weight 0.2 kg
