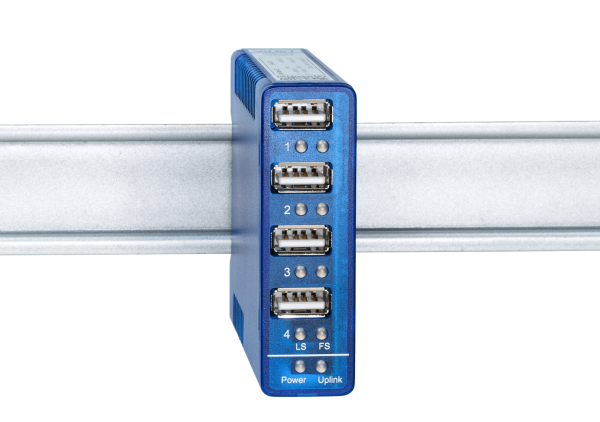

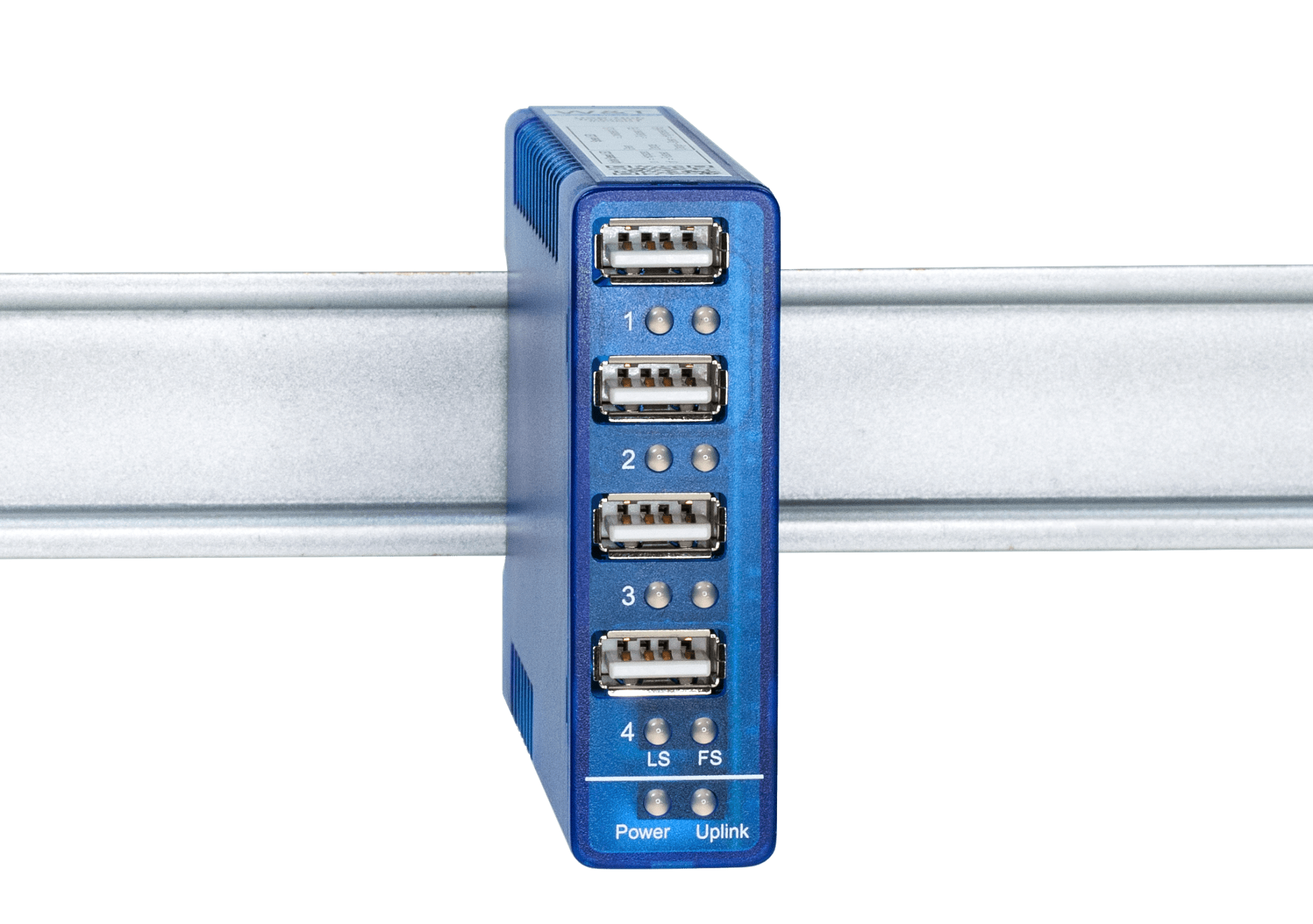

USB-Hub Industry

$328

Multiple USB devices on one USB port

The USB-Hub Industry allows you to connect multiple USB devices to a single USB port. The device provides four full-function USB 2.0 high speed ports, can be used over an expanded temperature range and is powered, as usual in industrial applications, with a voltage of 24 – 48V DC.

Manufacturer: Wiesemann & Theis / Country of Origin: Germany

SKU:

33601

More details

Interfaces:

1 x Upstream Port (USB type B)
4 x Downstream Ports (USB type A)

Management and connectivity:

Industry-compatible design on account of
- noise immunity in accordance with EN 61000-6-2
- Housing suitable for installation on top hat rails
- Operating temperature range 0…70°C
USB compatibility
- USB 1.0
- USB 1.1
- USB 2.0
Transmission rate up to max. 480 Mbps
Multi-TT (Transaction Translator) USB architecture guarantees full speed on all downstream ports, even when different modes (USB 1.0 / 1.1 / 2.0) are active
500mA current supply per port available
LEDs for System Power and Port Status
Individual port power management
Plug and Play with no additional drivers:
- Supports Windows 98 / Me / 2000 / XP / Server 2003 / Vista / Server 2008 (x86 and x64)
- Supports Mac OS 8, OS 9 and OS X
- Supports Linux without additional drivers for kernel version 2.4.0 and higher

Power supply:

External
- Supply voltage 24 … 48V DC

Standards & more

Conforms to standards both in office and industrial environments:
- High noise resistance per EN 61000-6-2
- Low noise emission per EN 55032:2015 + A1 Cl. B, EN 61000-3-2 & EN 61000-3-3
5 year guarantee

Connections and displays:

Upstream connection:
- USB “B”-Type
Downstream connection:
- USB “A”-Type
Speeds:
- LowSpeed 1.5 Mbit/s
- FullSpeed 12 Mbit/s
- HighSpeed 480 Mbit/s
Protocols:
- USB 1.0
- USB 1.1
- USB 2.0
Supply voltage:
- 24 .. 48V DC (+/-10%) from external power supply
Current consumption:
- Idle: typ. 30mA @24V
- Maximum: 540mA @24V

Housing and other data:

Housing:
- Plastic housing for top hat rail installation
- 105 x 22 x 75mm (L x W x H)
Enclosure rating:
- IP20
Weight:
- approx. 170g
Ambient temperature:
- Storage: -40..+85°C
- Non-cascaded: 0..+70°C
- Cascaded: 0..+60°C
Permissible relative humidity:
- 5..95% RH (non-condensing)
MTBF:
- 420,560h @25°C per MIL-HDBK-217
Scope of delivery:
- USB-Hub Industry
- USB cable with ferrite bead
- manual
